ROVs PORTFOLIO

MSA’s ROV fleet is composed by three types of Observation Class ROV (OCROV).

These vehicles are fitted with ancillary equipment consisting of a camera, lights, sonar and USBL (Ultra-Short Baseline positioning system). They are primarily intended for pure observation tasks, although they may be able to carry one additional sensor (water sampler, laser, manipulator, etc.)

   Features

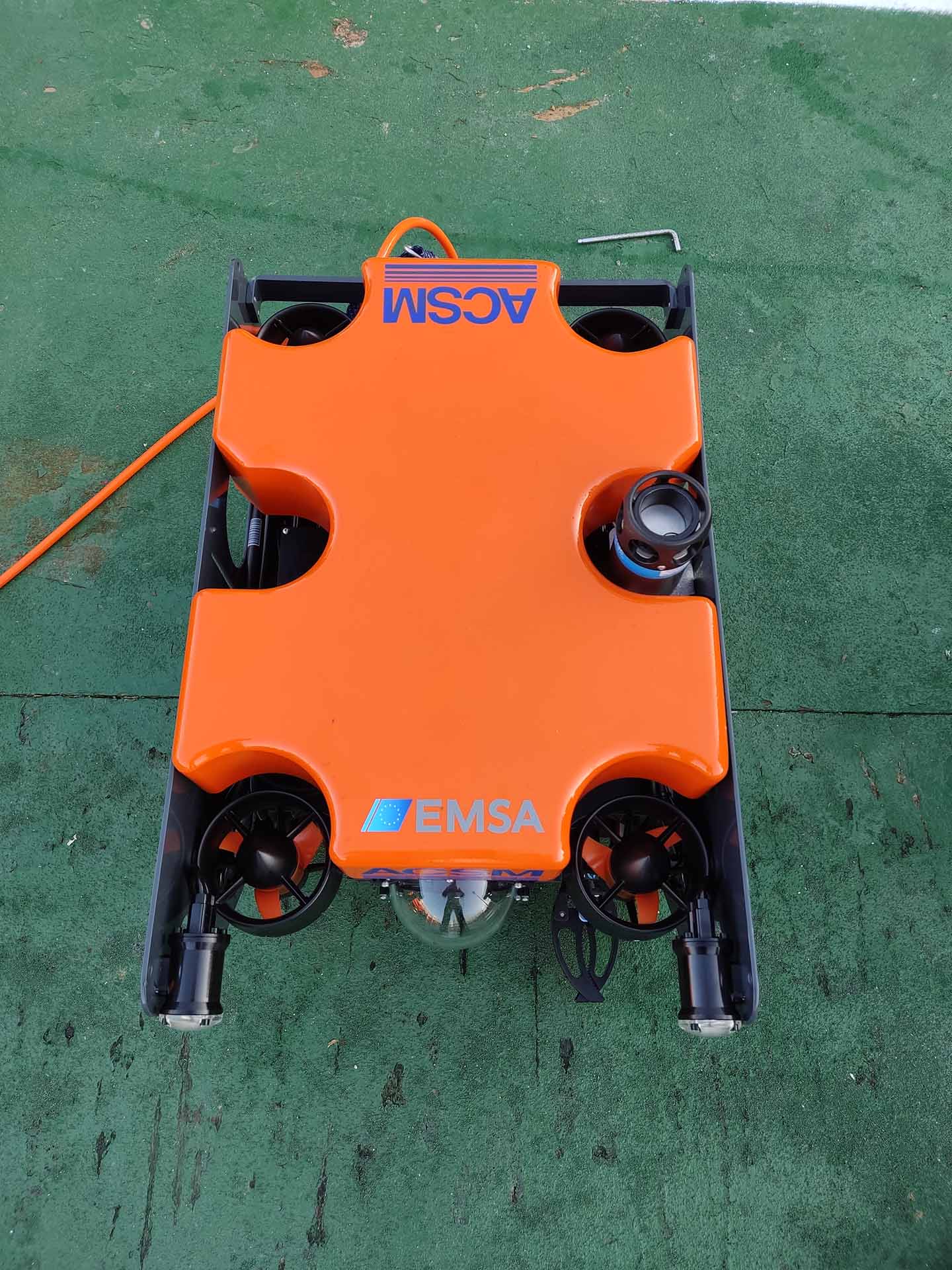

 rov01
  • Depth rating: 400 m
  • Dimensions: 559 x 356 x 305 mm (LWH)
  • Weight: 14.7 kg
  • Payload capacity (fresh water): 2.5 kg
  • Thruster: 4 lateral (35deg) / 4 vertical
  • Lights: 6 x 1,500 Lumen each
  • Advanced Telemetry System

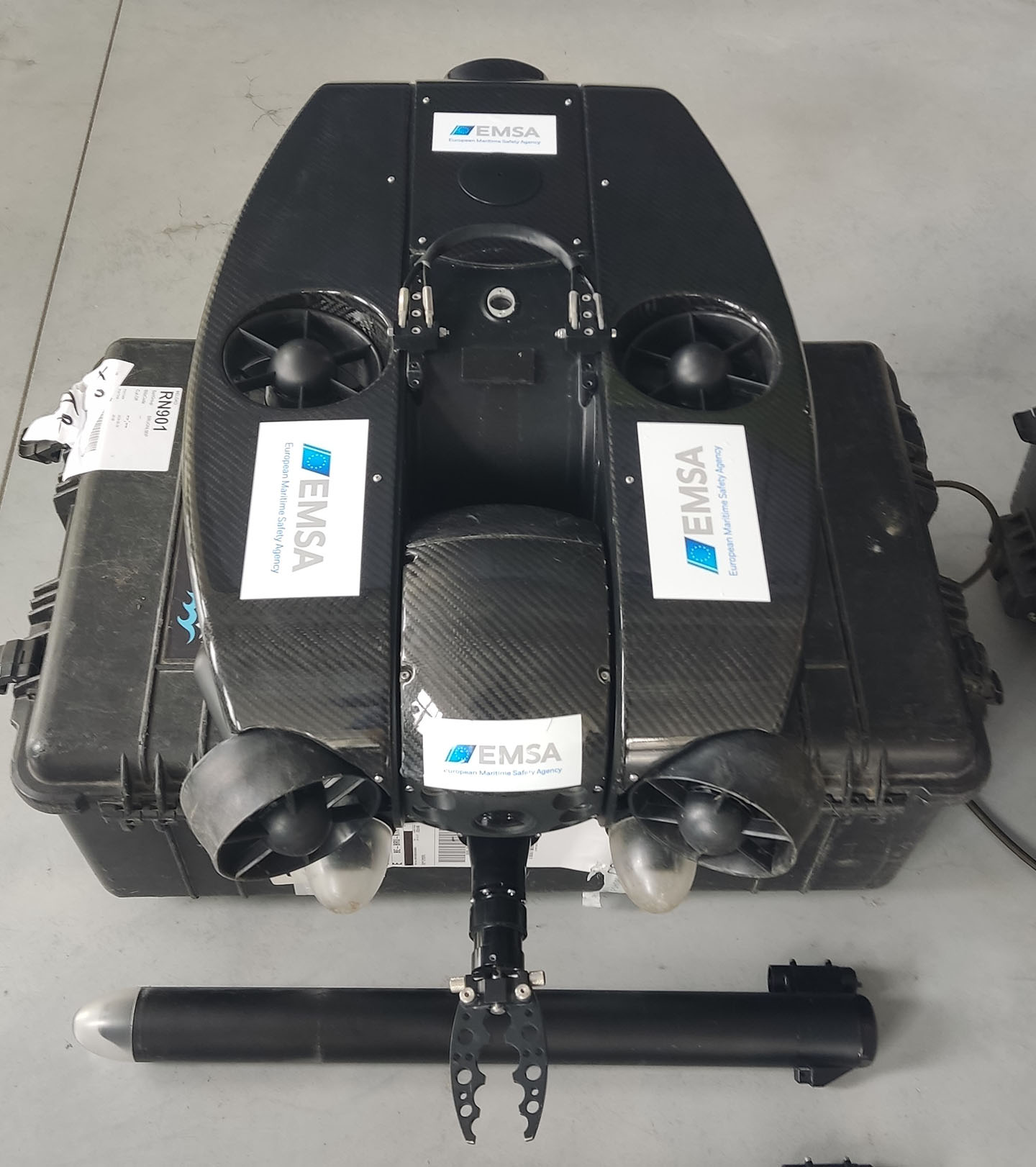

 rov02
  • Depth rating: 305 m
  • Dimensions: 717 x 440 x 235 mm (LWH)
  • Weight: 26kg
  • Thrusters: 4 lateral / 2 vertical
  • Lights: Fully Dimmable 11,800
  • Advanced Telemetry System

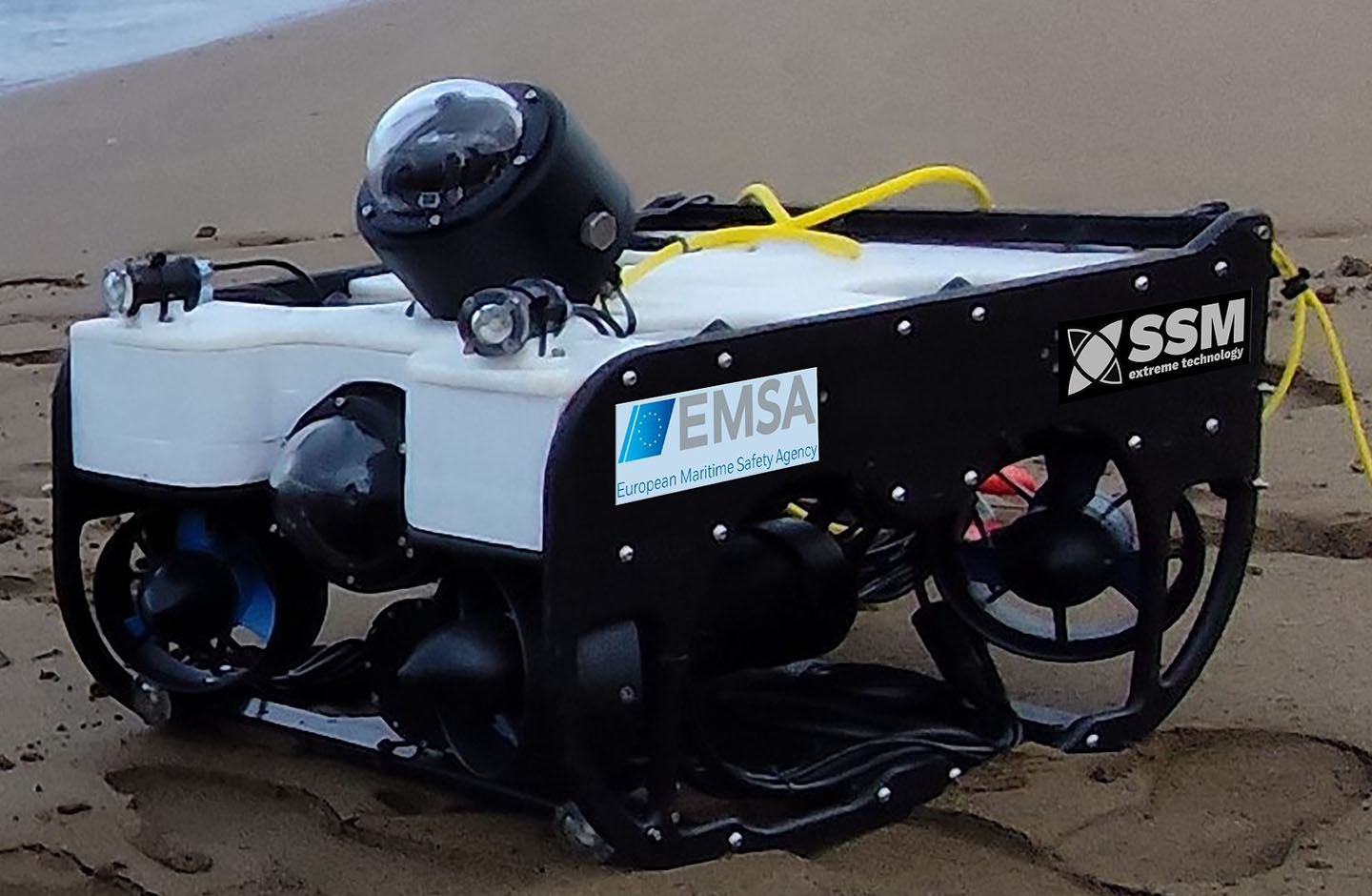

 rov01
  • Depth rating: 500 m
  • Dimensions: 532 x 411 x 356 mm (LWH)
  • Weight: 15 kg
  • 8 thrusters: 4 lateral / 4 vertical
  • Advanced Telemetry System
  • Lights
