RPAS Portfolio – Fixed Wing & Vertical Take-Off and Landing Aircrafts



 Main ServiceFlight
Time
MTOM Take-off Aircraft Specifics
  rpas emsa

Multipurpose maritime  surveillance

 up to 9h  180 kg Runaway
  • Can fly Beyond Radio Line of Sight (using Satellite communications)
  • EO/IR cameras including laser illuminator, AIS sensor, EPIRB, Satcom terminal, Maritime Radar, radar emitter detector, Mobile phone detector
  • Can be equipped to drop an inflatable life raft for 8 persons.
  rpas AR5 emsa

Multipurpose maritime  surveillance

up to 10h
(with radar)

up to 15h
(without radar)
36.3 kg

Take-off with catapult.

Landing with recovery net in circle area with 20m diameter.
  • Can fly for up to 800km along the coast with a relay of antennas.
  • EO/IR cameras including laser illuminator, maritime radar, EPIRB, AIS receiver.
rpas emsa

Multipurpose maritime surveillance

up to 9h 50 kg Vertical Take-off & Landing area
<10mx10m
  • Can fly up to 140km
  • Vertical take-off/land from vessel or land
  • Payloads: EO/IR with automatic scanning mode, AIS receiver, EPIRB
rpas emsa Emissions monitoring/
Multipurpose maritime Surveillance
up to 6h > 150 kg  Landing area
<10mx10m
  • Can take-off/land from Vessels or land
  • Emissions monitoring sensor (SOx/NOx sniffer)
  • EO/IR cameras, laser range finder and illuminator, AIS receiver, EPIRB.

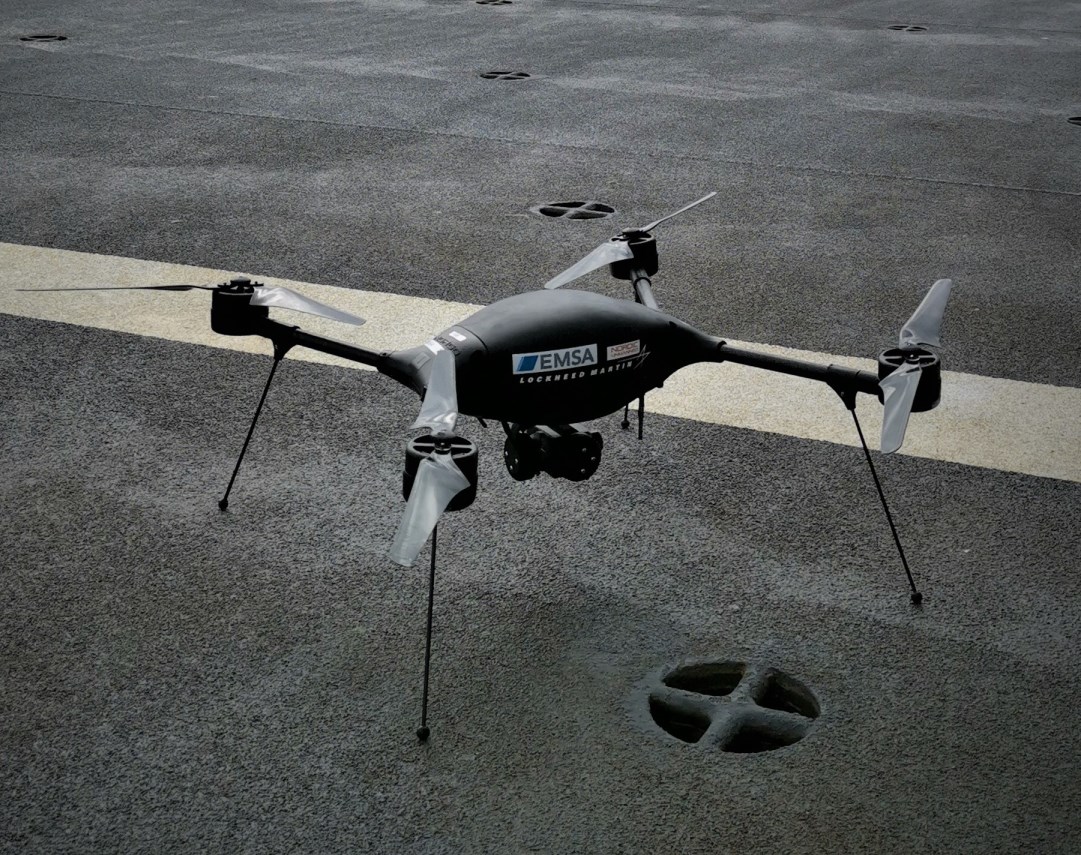

RPAS 7

Support to pollution response
(from vessels or in coastal areas) / multipurpose maritime surveillance

> 35 min <3 kg Landing area
<2mx2m (vessels)
  • Can take-off/land from Vessels or land
  • small logistical footprint
  • fast operational readiness
  • EO/IR, capability to transport and drop small objects (samples, USB ..)

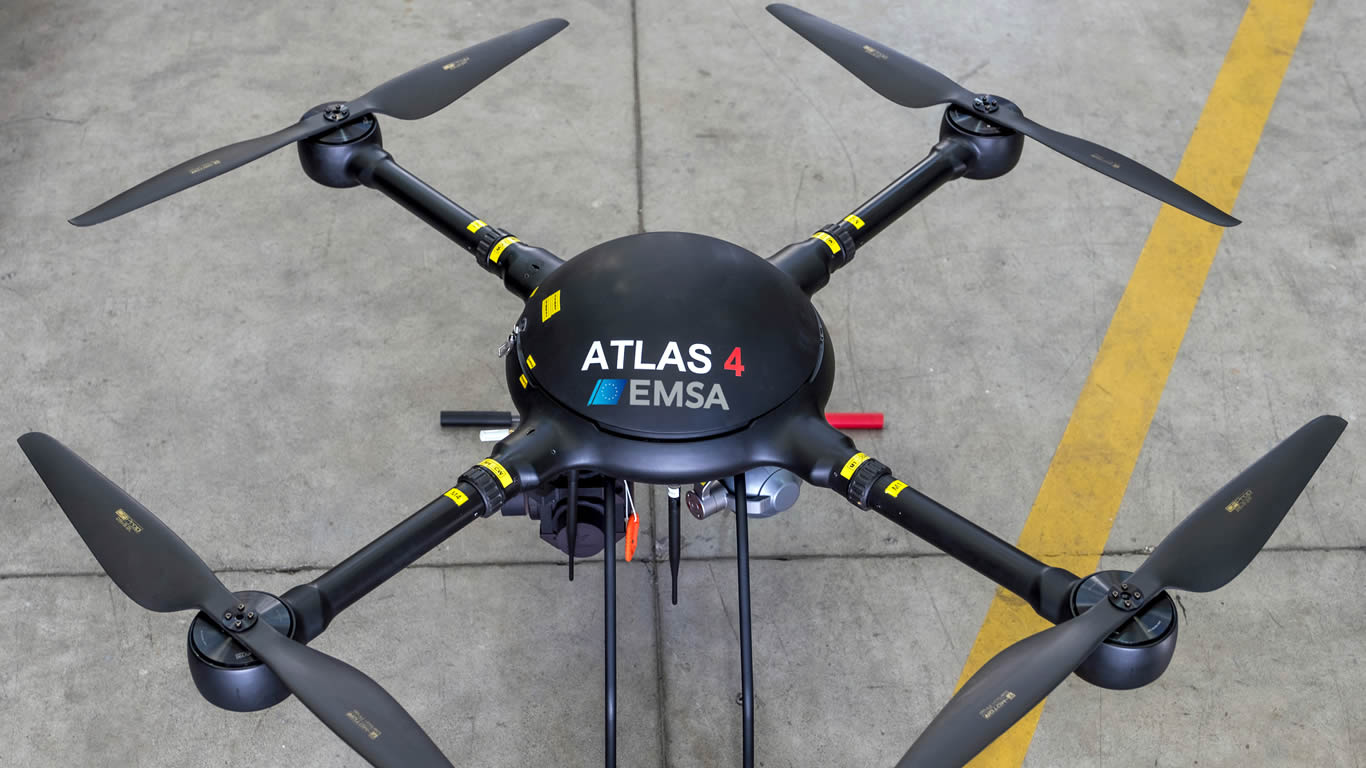

ALTUS LSA Atlas 4 NG M v3 Emission Monitoring
(from vessels or in coastal areas) / multipurpose maritime surveillance
50 min 13 Kg Landing area 5mx5m (min 2x2m)
  • Can take-off/land from Vessels or land
  • small logistical footprint
  • Emissions monitoring sensor (SOx/NOx sniffer)
  • EO/IR cameras, AIS receiver
